Description & Specifications

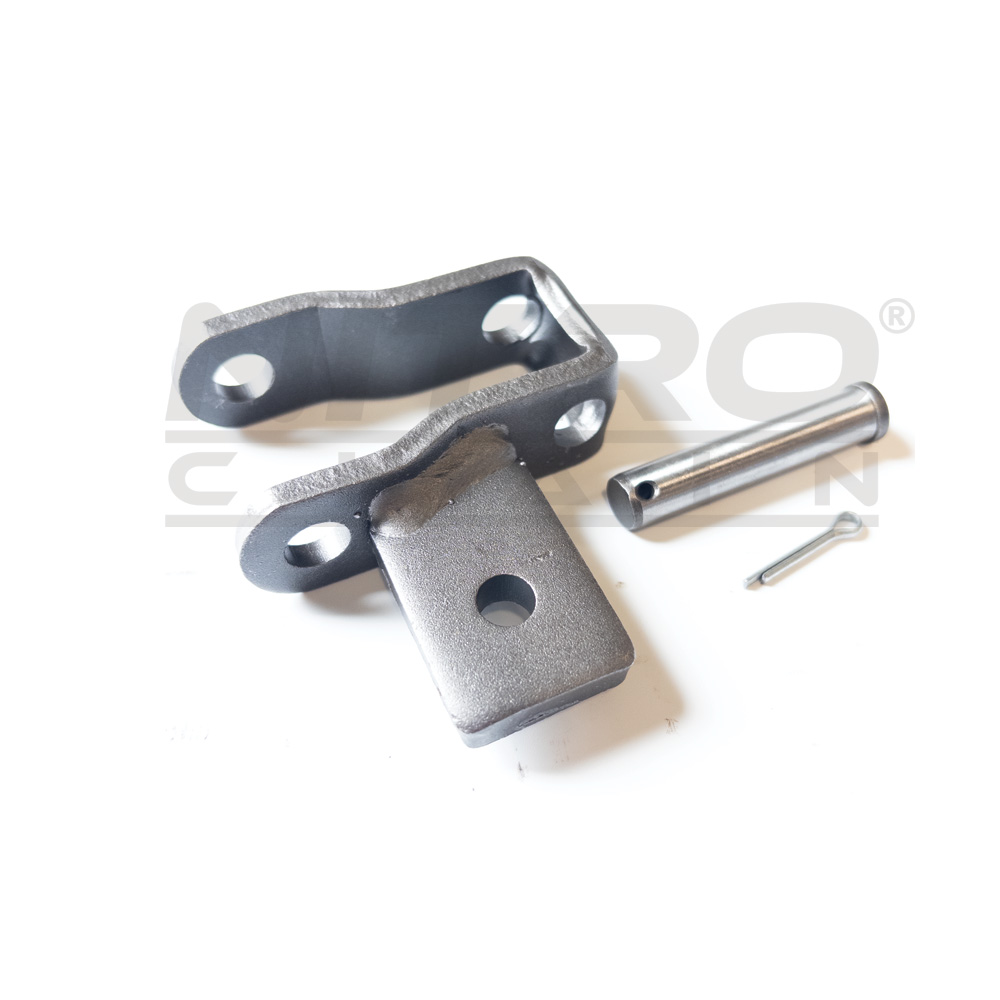

A 667XH connecting link with an AS tab welded to one side, supplied with one connecting pin and one cotter pin. Use it to replace a broken or bent attachment link in an existing strand, or to build a chain with AS attachments spaced exactly where your equipment needs them.
Because the connection is made with a pin and cotter pin, the repair can be done on the machine with hand tools. Keep one on the shelf as a spare, or order several and add attachments to plain 667XH chain yourself.
Repair a strand or build your own
One link, one pin, one cotter pin — for heavy-duty 667XH pintle chain

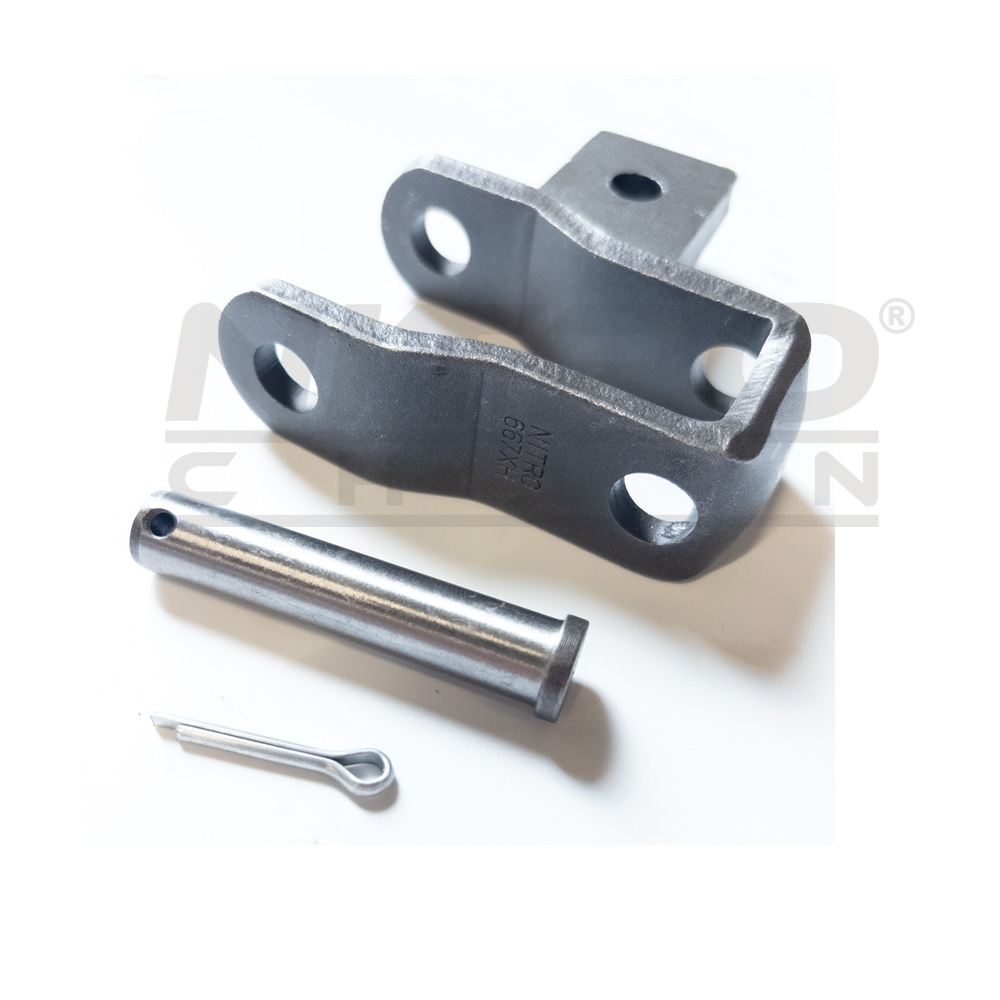

What's included
- One 667XH connecting link with AS tab, welded one side, single hole
- One connecting pin
- One cotter pin
Two ways to use it
- Replace a broken AS link: Splice out the damaged link and put this one in its place. The slat or crossbar bolts back to the same tab position, so the rest of the strand stays as it is.
- Build your own attachment chain: Start with plain 667XH chain and set AS links wherever you want them such as every 6th, 7th, 8th link, or any spacing your machine calls for.

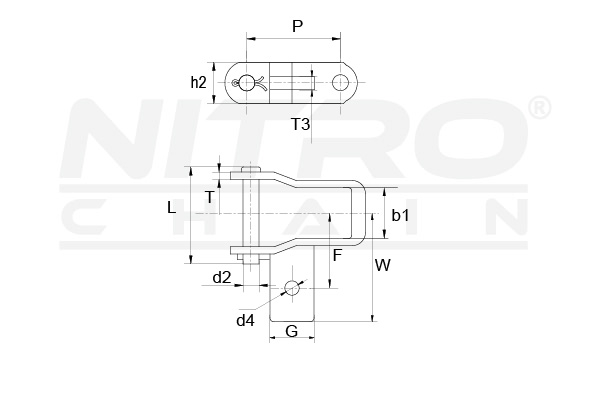

- Pitch (P):2.250"
- Inner Width (b1):1.079"
- Overall Width (L):2.283"
- Pin Diameter (d2):0.469"
- Link Plate Height (h2):1.075"
- Link Plate Thickness (T):0.224"
- Plate Thickness (T3): 0.375"
- Tab Width (G):1.250"
- Centerline To Outer Attachment Width (W):2.750"
- Width To Center Hole (F):2.031"
- Attachment Hole Diameter (d4):0.388"
- Chain Material:Carbon/Alloy Steel
All dimensions listed are nominal values.
