Description & Specifications

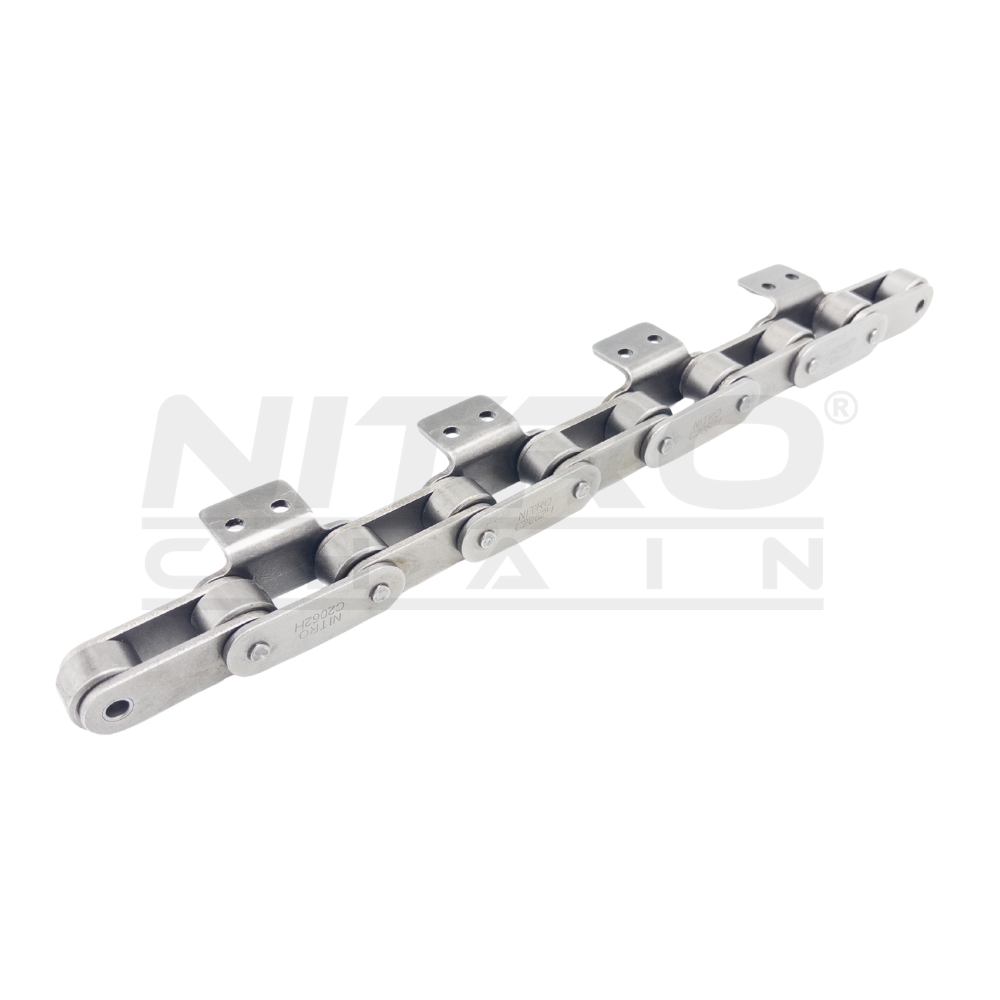

C2062H A2-2PL Roller Chain Dimensions
- Pitch (P):1-1/2''
- Inner Width (b1):1/2''
- Roller Diameter (d1):0.875"
- Pin Diameter (d2):0.234''
- Link Plate Height (h2):0.709''
- Link Plate Thickness (T):0.125''
- Tab Width (G):1.125''
- Hole Spacing (G1):0.563"
- Centerline To Outer Attachment Width (W):1.238''
- Width To Center Hole (F):0.844''
- Attachment Hole Diameter (d4):0.200''
- Attachment Height (h4):0.579''
- Attachment Spacing (S):3.000''
- Average Tensile Strength:9,700 lbs
- Max Working Load:1,411 lbs
- No. Of Pitches/Links Per 10 Feet:80
- No. Of Connecting Links Included:1
- Chain Material:Carbon/Alloy Steel
- Industry Standard:ANSI B29.4
- Chain Generation:N2
All dimensions listed are nominal values.
