Description & Specifications
The NITRO MS515 Flat Top Chain is designed for straight running applications. Constructed from high-quality 420 stainless steel, this chain has a width of 3-1/2" and is supplied in a 10ft roll. It features a flat top surface for smooth and efficient product conveyance.

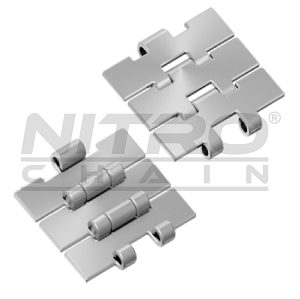

![NITRO MS515 Flat Top Chain, Straight Running, 3-1/2]()
- Pitch (P):1"
- Pin Diameter (d2):0.236"
- Link Plate Thickness (T):0.122"
- Flat Top Chain Gap (FG)0.070"
- Backflex Radius (FR)2.952"
- Base Width (BW2)1.653"
- Guide Channel Opening (GC)1.732"
- Flat Top Width (FW)3-1/2"
All dimensions listed are nominal values.
