Description & Specifications

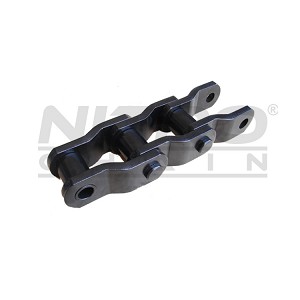

NITRO 1306 Offset Sidebar Chain is a heavy-duty steel drive chain built for asphalt, mining, aggregate, foresty & pulp appliciations as well as other various types of machines.
1306 Chain Dimensions
- Pitch (P):6.000"
- Inner Width (b1):2.937"
- Roller Diameter (d1):3.000"
- Overall Width (L):7.173"
- Pin Diameter (d2):1.492"
- Link Plate Height (h2):4.000"
- Link Plate Thickness (T):0.750"
- Average Tensile Strength:314,730 lbs
- Max Working Load:21,401 lbs
- No. Of Pitches/Links Per 10 Feet:20
All dimensions listed are nominal values.
