Description & Specifications

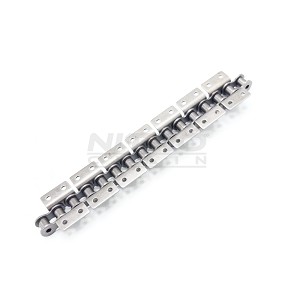

Nitro Chains #40 WK-2 Attachment roller chain is a high-quality roller chain that features WK-2 attachments every 2nd pitch. This chain is designed for use in a variety of industrial applications, including conveying, packaging, and material handling.The chain features solid bushings provides better wear resistance over other brands that use split bushings.
- Pitch (P):1/2''
- Inner Width (b1):0.312''
- Roller Diameter (d1):0.312''
- Overall Width (L):0.653''
- Pin Diameter (d2):0.156''
- Link Plate Height (h2):0.469''
- Link Plate Thickness (T):0.060''
- Tab Width (G):0.905"
- Hole Spacing (G1):0.500"
- Centerline To Outer Attachment Width (W):0.700"
- Width To Center Hole (F):0.500''
- Attachment Hole Diameter (d4):0.133"
- Attachment Spacing (S):1.000''
- Average Tensile Strength:4,079 lbs
- Max Working Load:816 lbs
- No. Of Pitches/Links Per 10 Feet:240
- No. Of Connecting Links Included:1
- Chain Material:Carbon/Alloy Steel
- Chain Generation:N3
All dimensions listed are nominal values.
