Description & Specifications

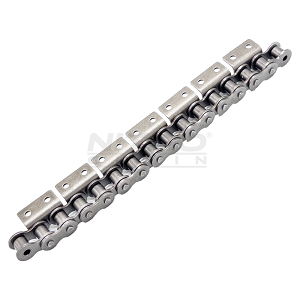

Nitro Chains #50 WA-2 Attachment roller chain is a high-quality roller chain that features WA-2 attachments every 2nd pitch. This chain is designed for use in a variety of industrial applications, including conveying, packaging, and material handling.The chain features solid bushings provides better wear resistance over other brands that use split bushings.
- Pitch (P):5/8''
- Inner Width (b1):0.375"
- Roller Diameter (d1):0.400''
- Overall Width (L):0.815''
- Pin Diameter (d2):0.200''
- Link Plate Height (h2):0.585''
- Link Plate Thickness (T):0.080''
- Tab Width (G):1.133"
- Hole Spacing (G1):0.625"
- Centerline To Outer Attachment Width (W):0.921"
- Width To Center Hole (F):0.625''
- Attachment Hole Diameter (d4):0.216"
- Attachment Spacing (S):1.250''
- Average Tensile Strength:6,834 lbs
- Max Working Load:1,345 lbs
- No. Of Pitches/Links Per 10 Feet:192
- No. Of Connecting Links Included:1
- Chain Material:Carbon/Alloy Steel
- Chain Generation:N4
All dimensions listed are nominal values.
