Description & Specifications

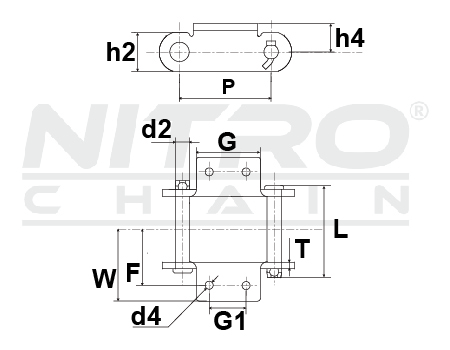

- Pitch (P):4.000"
- Overall Width (L):4.354"
- Pin Diameter (d2):0.625"
- Link Plate Height (h2):1.500"
- Link Plate Thickness (T):0.375"
- Tab Width (G):2.618"
- Hole Spacing (G1):1.750"
- Centerline To Outer Attachment Width (W):3.204"
- Width To Center Hole (F):2.655"
- Attachment Hole Diameter (d4):0.409"
- Attachment Height (h4):1.000"
All dimensions listed are nominal values.
