Description & Specifications
NITRO® S856 Steel Bushed Chain with K35 Attachments Every 2nd Link is a heavy-duty, highly versatile chain designed for demanding conveying applications. Built with solid steel bushings for exceptional wear resistance and extended life, this chain excels in abrasive environments and under high loads. The addition of K35 attachments every second link provides convenient mounting points for buckets, flights, or other conveying components, making it ideal for bulk material handling in industries like agriculture, mining, and cement.

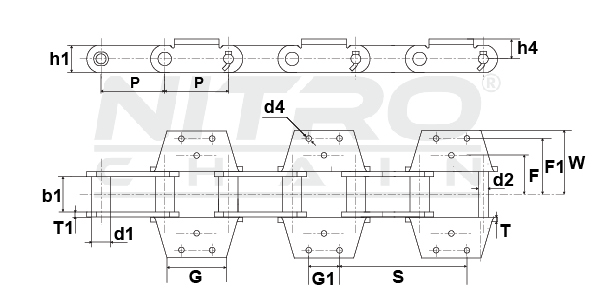

- Pitch (P):6.000"
- Inner Width (b1):3.000"
- Bushing Diameter (Bd1):1.750"
- Overall Width (L):6.098"
- Pin Diameter (d2):1.000"
- Link Plate Height (h2):2.500"
- Link Plate Thickness (T):0.500"
- Tab Width (G):5.838"
- Hole Spacing (G1):2.500"
- Centerline To Outer Attachment Width (W):6.780"
- Width To Center Hole (F):3.625"
- Width To Center Hole (F1):5.875"
- Attachment Hole Diameter (d4):0.689"
- Attachment Height (h4):1.882"
- Attachment Spacing (S):12.000"
- Average Tensile Strength:90,000 lbs
- No. Of Pitches/Links Per 10 Feet:20
- No. Of Connecting Links Included:1
All dimensions listed are nominal values.
