Description & Specifications

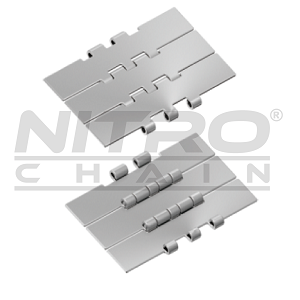

The NITRO SS802 Flat Top Chain is designed for straight running applications. Constructed from high-quality 430 stainless steel, this chain has a width of 7-1/2" and is supplied in a 10ft roll. It features a flat top surface for smooth and efficient product conveyance.
![NITRO SS802 Flat Top Chain, Straight Running, 7-1/2]()
- Pitch (P):1-1/2"
- Pin Diameter (d2):0.250"
- Link Plate Thickness (T):0.122"
- Flat Top Chain Gap (FG)0.070"
- Backflex Radius (FR)5.905"
- Base Width (BW2)3.150"
- Guide Channel Opening (GC)3.267"
- Flat Top Width (FW)7-1/2"
All dimensions listed are nominal values.
