Description & Specifications

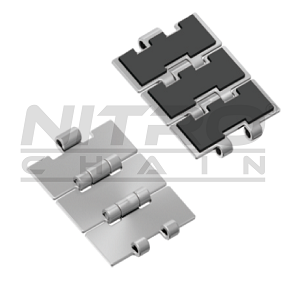

The NITRO SS812 Flat Top Chain is designed for straight running applications. Constructed from high-quality 430 stainless steel, this chain has a width of 3-1/4" and is supplied in a 10ft roll. It features a flat top surface for smooth and efficient product conveyance. It includes rubber grip pads glued on for enhanced traction, mainly used in incline conveyors to prevent products from sliding on incline sections.
![NITRO SS812 Flat Top Chain, Straight Running, Rubber Grip Pad, 3-1/4]()
- Pitch (P):1-1/2"
- Pin Diameter (d2):0.250"
- Link Plate Thickness (T):0.122"
- Flat Top Chain Gap (FG)0.070"
- Backflex Radius (FR)5.905"
- Base Width (BW2)1.653"
- Guide Channel Opening (GC)1.732"
- Flat Top Width (FW)3-1/4"
All dimensions listed are nominal values.
