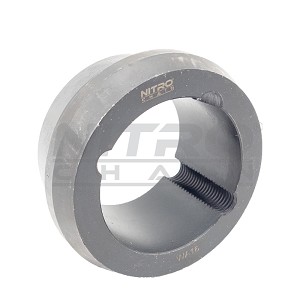

WA12 Taper Bush Weld On Hub

The Nitro WA12 Taper Bush Weld-On Hub is a heavy-duty weld-on hub designed to provide a secure and dependable shaft connection in demanding applications. Precision-machined from 1020 cold drawn (CD) steel and finished with a black oxide coating, this hub delivers excellent strength, durability, and corrosion resistance.

Engineered to accept a 1215 taper bushing, the WA12 hub offers a strong, concentric fit that ensures smooth power transmission and easy assembly or disassembly. Its Type WA design features a heavier construction compared to standard Type S hubs, making it ideal for high-torque or heavy-load applications where a firmer fit to the shaft is essential.

The WA12 hub is commonly welded onto sprockets, pulleys, conveyor rollers, and agitators, providing a tight connection that performs reliably under continuous industrial operation.

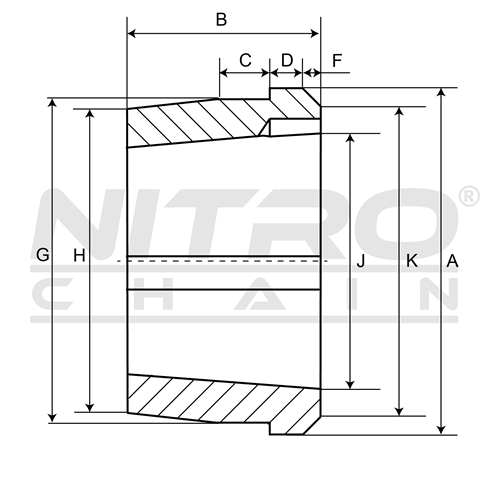

WA12 Taper Bush Weld On Hub Specifications

• Tapered Bushing No:1215*
• (A)2.875"
• (B)1.500"
• (C)0.375"
• (D)0.625"
• (F)0.375"
• (G)2.500"
• (H)2.375"
• (J)1.875"
• (K)2.625"
• Hub Series:WA Series
• Type Of Finish:Black Oxide

All dimensions listed are nominal values.

*Bushing Not Included
