Description & Specifications

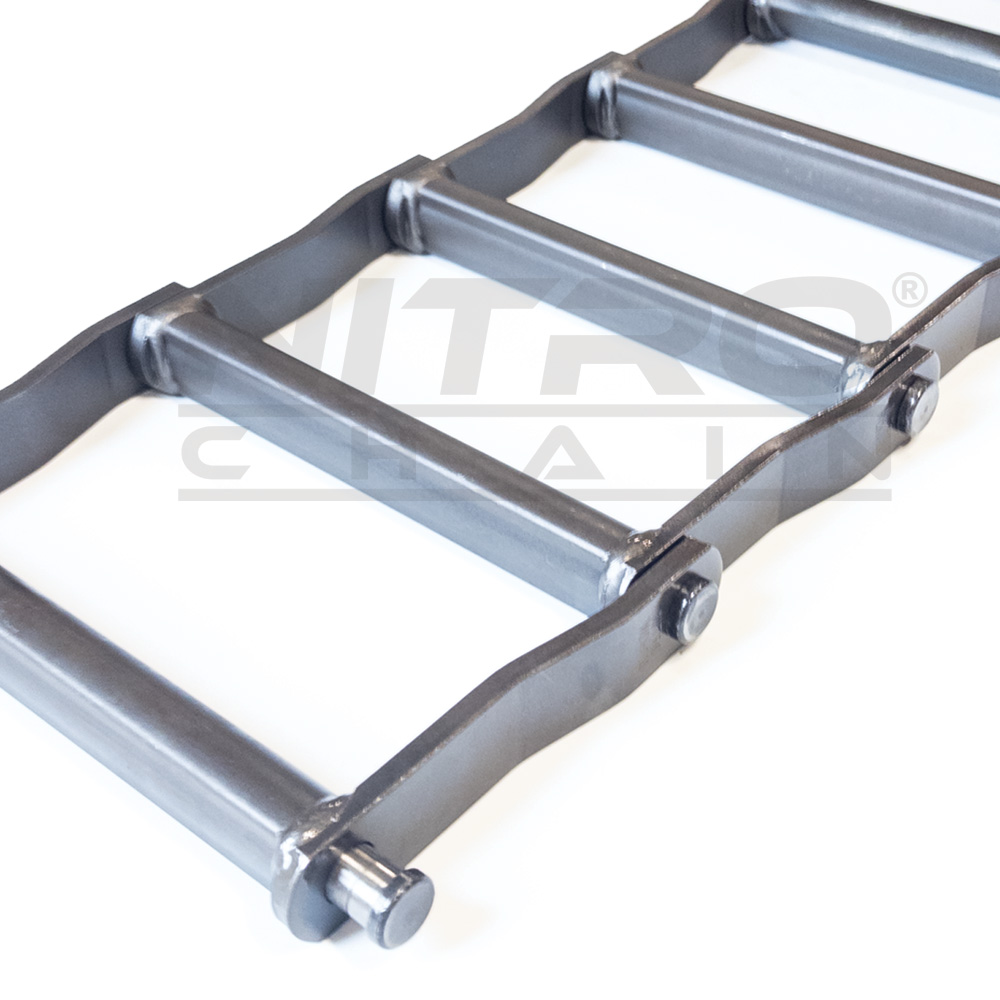

Upgrade your conveying power with the heat-treated Nitro Chain WDH480 welded drag chain. This industrial workhorse features superior heat treatment on pins, barrels, and side plates for unparalleled strength, wear resistance, and durability in the most demanding environments. Ideal for heavy-duty applications in lumber, pulp and paper, grain handling, and more. Experience the Nitro Chain difference – longer lifespan, reduced downtime, and exceptional value.
- Pitch (P):8.000"
- Inner Width (b1):11.118"
- Length Thru Bushing (BL):12.780"
- Overall Width (L):14.881"
- Pin Diameter (d2):0.875"
- Link Plate Height (h2):2.039"
- Link Plate Thickness (T):0.500"
- Average Tensile Strength:79,000 lbs
- Max Working Load:15,000 lbs
- No. Of Connecting Links Included:1
All dimensions listed are nominal values.
